FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter

  • FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter
  • FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter
  • FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter
  • FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter
  • FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter
  • FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter
Place of Origin CHINA
Nazwa handlowa KCO
Orzecznictwo ROHS
Model Number GJS03-M1AX-A8
Minimum Order Quantity 50 units
Cena USD
Packaging Details Carton Box
Delivery Time 10~12 working days
Payment Terms T/T, L/C, Western Union
Supply Ability 5000~-8000 units per month

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Material PP+Glass Fiber Port 1 (Oval)+8 (Round)
Max Cores 96 Cores Adapter 24 pcs SC Adapter
Carton Size 475*400*420 Carton Package 4 Units/CTN
Zostaw wiadomość
opis produktu



FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter



Products Description:

FOSC400A8 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive Packing List fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.

Application :

It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.

Features:

1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
4. The splice trays are hinged for access to any splice tray, without disturbing other trays.
5. The inner parts and fixing parts are made of stainless steel
6. With a earthing device protect it from damage by lightning
7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)

Technical Parameter:

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius: 30mm. Low optical loss.

Model & Drawing:

               FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter 0

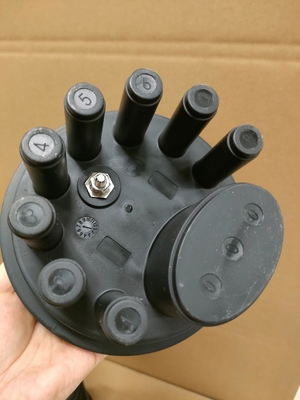

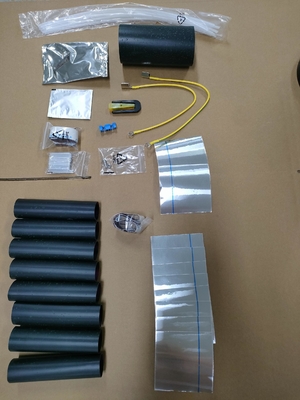

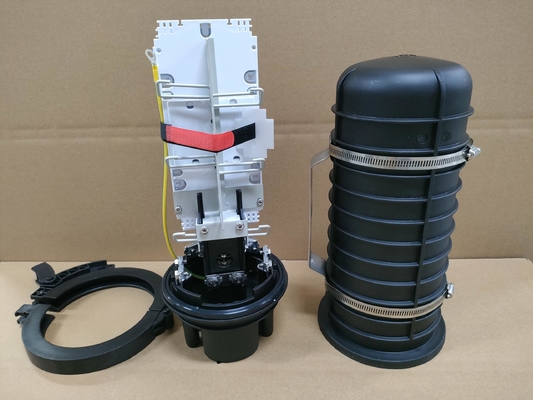

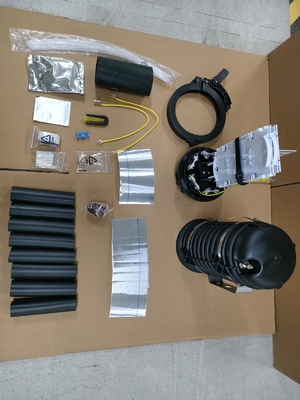

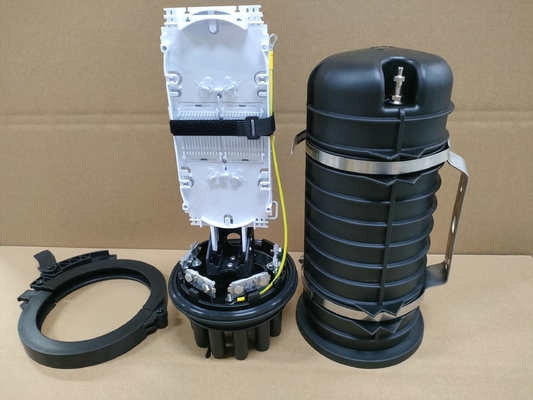

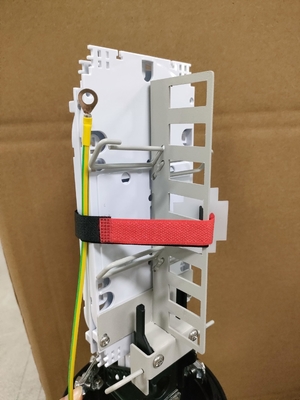

Producs photos:

               FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter 1

               FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter 2

               FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter 3

               FOSC400 A8 Fiber Optic Splice Closure Dome Type 48cores 96 Cores with 24 SC adapter 4

Delivery Ways:

  By Sea or by Car or by Air.
