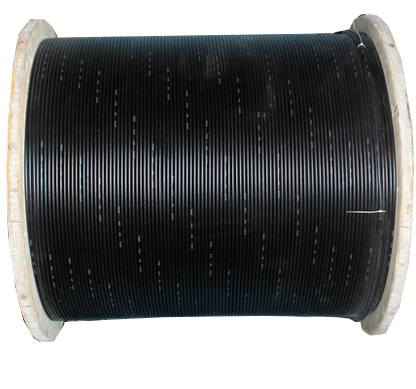

Outdoor Aerial Light Armored GYXTW Fiber Optic Cable

Miejsce pochodzenia Guangdong, Chiny
Nazwa handlowa KCO, Kocent Optec Limited
Orzecznictwo ISO9001, RoHS
Numer modelu KCO-GYXTW-xA1
Minimalne zamówienie Negocjacja
Cena negotiable
Szczegóły pakowania drewniana rolka, drewniana paleta
Czas dostawy 3 ~ 5 dni po otrzymaniu płatności
Zasady płatności Western Union, T/T, L/C.
Możliwość Supply 10 000 km/ miesiąc

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Tworzywo PE, LDPE, HDPE Nazwa Zewnętrzny kabel światłowodowy
Długość 2 km ~ 3 km na każdą rolkę Typ kabla Gyxtw
Błonnik Wielomodowy OM2 50/125 Rdzenie 2 rdzenie do 24 rdzeni
Kolor Czarny Średnica 7,0 mm
Numer części Gyxtw-XA1
Podkreślić

outdoor aerial fiber optic cable

,

armored GYXTW fiber cable

,

weatherproof fiber optic cable

Zostaw wiadomość
opis produktu

Outdoor Aerial Light Armored GYXTW Fiber Optic Cable

1. What is GYXTW fiber optic cable?

The GYXTW fiber optic cable is a type of outdoor, light-armored fiber optic cable for use in aerial or duct installations.

Its name describes its construction:

  • --> GY for outdoor use,
  • --> X for a central loose tube structure,
  • --> T for a filled/water-blocking structure,
  • --> W for a steel polyethylene bonded sheath with steel wires for armor.

GYXTW fiber optic cable is an outdoor use fiber loose tube cable for duct, aerial and direct buried applications. With water-blocking materials filled, ensure the compactness and longitudinal water-blocking performance.

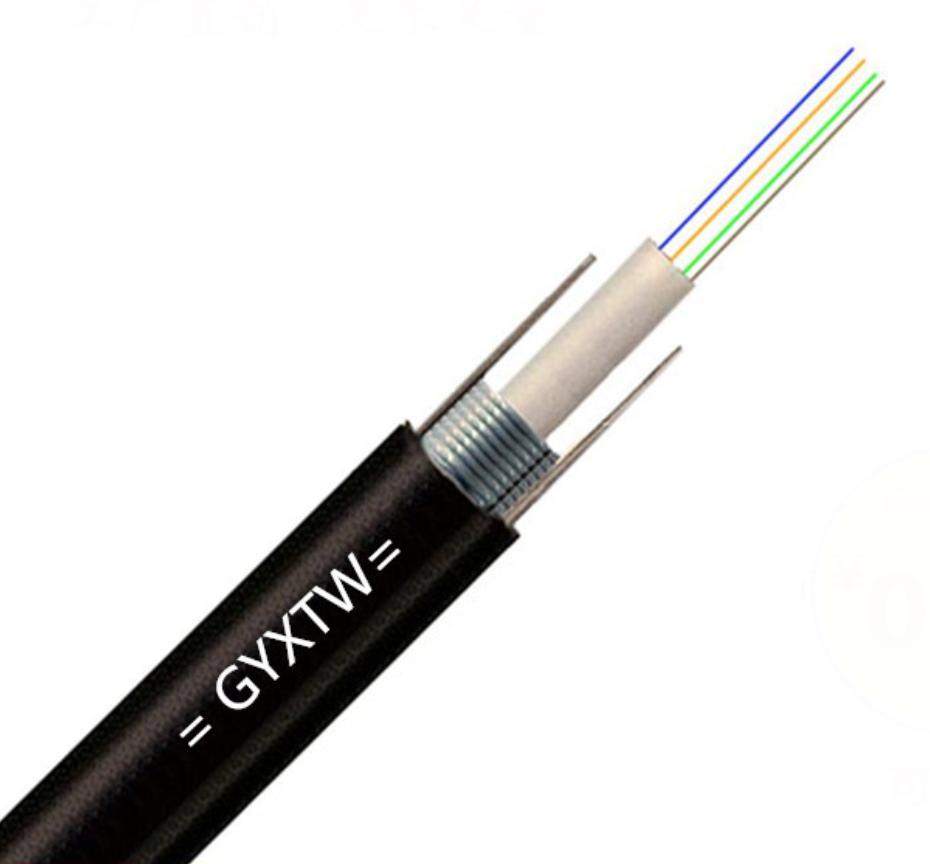

2. Construction:

Outdoor Aerial Light Armored GYXTW Fiber Optic Cable 0

3. Characteristics:

  • Steel-wire parallel member, filler protect tube fiber steel tape armored.
  • Excellent mechanical and environmental performance.
  • Compact structure, light weight can be installed conveniently and operated simply.

4. Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial, pipeline laying method.
  • Long distance and local area network communication.

5. Cable Mechanical Characteristic:

Fiber number Cable diameter Weight
1~24
7.0mm+-0.1mm 50kg/km

Temperature range -40°C to +70°C
Min Bending Radius(mm) Long term 10D
Min Bending Radius(mm) Short term 20D
Min allowable Tensile Strength(N) Long term 1200
Min allowable Tensile Strength(N) Short term 1500
Operation temperature -40°C+70°C
Installation temperature -20°C+60°C
Storage temperature -40°C+70°C

6. Fiber characteristic:

Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0
----
Dispersion 1550nm Ps/(nm*km) Dispersion
1625nm Ps/(nm*km)
Bandwidth 850nm MHZ.KM Bandwidth
1300nm MHZ.KM
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber ≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----
1550nm um ----
Numerical Aperture(NA) 0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color:

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

  • - International express such as UPS, TNT, DHL, etc
  • - Internatioal air: CA, AA, EA, etc
  • - By sea
