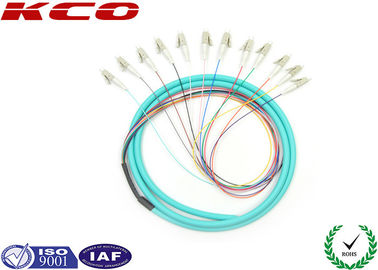

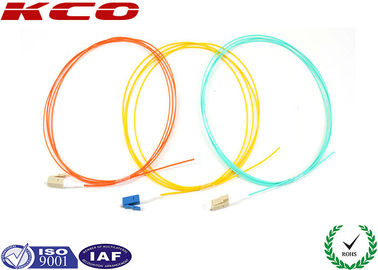

Simplex Fanout LC OM3 OM4 Patch Cord 50 / 125 10G Fiber Optic Pigtails PVC Cover

  • Simplex Fanout LC OM3 OM4 Patch Cord 50 / 125 10G Fiber Optic Pigtails PVC Cover
  • Simplex Fanout LC OM3 OM4 Patch Cord 50 / 125 10G Fiber Optic Pigtails PVC Cover
  • Simplex Fanout LC OM3 OM4 Patch Cord 50 / 125 10G Fiber Optic Pigtails PVC Cover
Place of Origin Guangdong, China
Nazwa handlowa KCO
Orzecznictwo ISO9001, RoHS
Model Number LC-OM3-SX-0.9mm-1m
Minimum Order Quantity Negotiation
Cena negotiable
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Zasady płatności Western Union, T/T, L/C
Supply Ability 900,000pcs/month

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Złącze Wielomodowy LC Rdzeń 1 włókna, simplex
Okładka PCV Długość kabla 1,0m
Średnica kabla 0,9 mm Tryb światłowodowy Wielomodowy 50/125 OM3
Podkreślić

fiber optic pigtail cables

,

patch cord pigtail
Zostaw wiadomość
opis produktu
Simplex Fanout LC OM3 OM4 Patch Cord
50/125 10G Fiber Optic Pigtails with PVC Cover
Quick Specifications
Name: Fiber Optic Pigtail
Connector: LC Multimode 0.9mm
Connector Boot Color: White
Fiber Number: Simplex
Cable Diameter: 0.9mm
Cable Length: 1.0m
Fanout Length: 30mm
Mode: Multimode 10G 50/125
Cover: PVC
Cable Color: Aqua, Orange, etc.
Insertion Loss (IL): 0.3dB
Return Loss (RL): 55dB
Simplex Fanout LC OM3 OM4 Patch Cord 50 / 125 10G Fiber Optic Pigtails PVC Cover 0
Applications
  • CATV (Cable Television)
  • Telecommunication Networks
  • Computer Fiber Networks and Fiber Test Equipment
  • Communication Rooms
  • FTTH (Fiber to The Home)
  • LAN (Local Area Network)
  • FOS (Fiber Optic Sensor)
  • Fiber Optic Communication System
  • Optical Fiber Connected and Transmitted Equipment
  • Defense Combat Readiness
Product Characteristics
  • Low Insertion Loss
  • High Return Loss
  • Good Repeatability
  • Good Interchangeability
  • Excellent Environmental Adaptability
Product Description
LC fiber optic pigtails are available in single mode UPC/APC and multimode PC configurations. Available in simplex, duplex, or multi-fiber fanout/breakout configurations with cable diameters of 0.9mm, 2.0mm, 3.0mm, 4.2mm, and more. We also supply LC fiber optic patch cables with various diameters, lengths, and connector types.
About Fiber Optic Patch Cables
A fiber optic patch cable is capped at either end with connectors for rapid connection to CATV, optical switches, or other telecommunications equipment. The thick protective layer connects optical transmitters, receivers, and terminal boxes.
Single Mode vs Multimode Cables
Single Mode: Features a small diametral core allowing only one light mode, reducing attenuation for long-distance, high-bandwidth applications used by Telcos, CATV companies, and educational institutions.
Multimode: Has a large diametral core supporting multiple light modes, enabling more data transmission but with higher dispersion over distance. Ideal for short-distance data and audio/video applications in LANs.
Multimode Fiber Types
OM1: Orange jacket, 62.5µm core, supports 10GbE up to 33m
OM2: Orange jacket, 50µm core, supports 10GbE up to 82m
OM3: Aqua jacket, 50µm core, supports 10GbE up to 300m, 40/100GbE up to 100m
OM4: Aqua jacket, 50µm core, supports 10GbE up to 550m, 100GbE up to 150m
Technical Specifications
Type Standard, Master
Connector Style LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, Duplex MTRJ/Female, MTRJ/Male
Fiber Type 9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125 10G (Multimode) OM3
G652 (all type), G657(all type), G655(all type)
Cable Type Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm, Φ0.9mm buffered fiber
Cable Cover Material PVC, LSZH, Armored, Water-proof, FTTH, Outdoor
Return Loss (Single mode) ≤ 0.15dB (Master)
≤ 0.30dB (Standard)
≤ 0.30dB (Multimode)
UPC ≥ 50dB, SPC ≥ 55dB, APC ≥ 60dB (typ.65dB)
Tested by JDS RM 3750
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C
Simplex Fanout LC OM3 OM4 Patch Cord 50 / 125 10G Fiber Optic Pigtails PVC Cover 1
OEM/ODM Services
We offer comprehensive OEM and ODM services. Display your brand logo on cables, packaging bags, labels, or any other location - we can accommodate your branding requirements.
Packing & Shipping
Packing: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air (CA, AA, EA), or by sea.
