FC / APC Single Mode 1310/1550nm Dual Windows Fiber Optic 1*2 Fused Coupler

  • FC / APC Single Mode 1310/1550nm Dual Windows Fiber Optic 1*2 Fused Coupler
  • FC / APC Single Mode 1310/1550nm Dual Windows Fiber Optic 1*2 Fused Coupler
Place of Origin China
Nazwa handlowa KCO, Kocent Optec Limited
Orzecznictwo iSO9001, RoHS
Model Number FBT-Dual-FCU-3.0
Minimum Order Quantity 1 pcs
Cena Negotiable
Packaging Details plastic box
Delivery Time 3-5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50000pcs/ week

Skontaktuj się ze mną, aby uzyskać bezpłatne próbki i kupony.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Cable Material PVC, LSZH Cable length <1.0m
Cable diameter 2.0mm, 3.0mm Terminal connector FC/APC
Length wave 1310/1550nm Type FBT, Fused Fiber Splitter
High Light

Planar Lightwave Circuit Splitter

,

ABS Box PLC Splitter
Zostaw wiadomość
opis produktu

FC/APC Single Mode 1310/1550nm Dual Windows Fiber Optic 1*2 Fused Coupler



Quick informations:

Name: Fiber optic fused coupler

Type: 1x2
Rate: 50/50~5/95
Cable: 2.0mm, 3.0mm

Pack: ABS box type

Cable Length: <1.0m

Terminal Connector: FC/APC


Description:

Dual Window Wideband Couplers are high quality components designed to divide or combine optical signal in optical fiber system.

These devices are fabricated by using the fused bi-conical taper (FBT) process are reliable over wide range of temperature.

The operating wavelength is 1310nm and 1550nm and the passband is 80nm.

The coupling ratio can range from 1:99 to 50:50.

Various packaging and pigtailing configurations can satisfy our customer's requirements.



Features:

- Low insertion loss

- Low PDL

- High directivity

- Long haul reliability

- Customer defined specifications



Applications:

- Telecommucations

- Fiber in the loop

- Local area network

- CATV

- Fiber optic sensing

- Test instruments

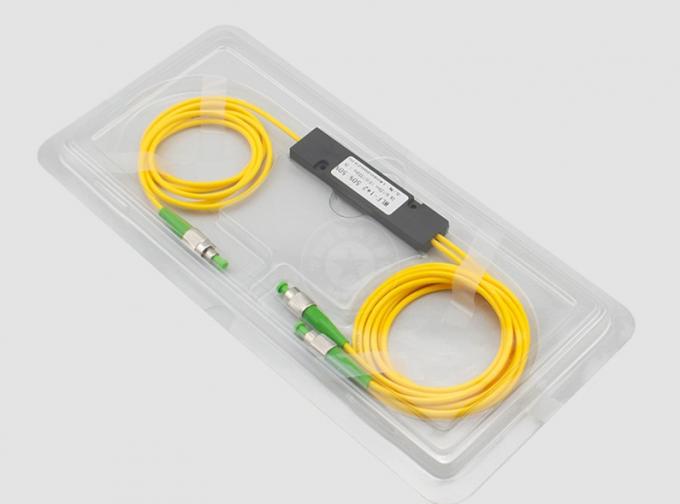

Product Photo:

FC / APC Single Mode 1310/1550nm Dual Windows Fiber Optic 1*2 Fused Coupler 0





Parameter:

Parameter   Unit Premium A B
Operating   nm 1310±40 and 1550±40
Excess loss Typ. dB 0.15
Polarization Stability Max dB 0.15 0.15 0.2
Uniformity(50:50) Max dB 0.4 0.5 0.6
Thermal Stability Max dB 0.2 0.3 0.4
Directivity Min dB 50(1x2),60(2x2)
Reflectance Min dB 50(1x2),60(2x2)
Operating Temperature   °C -30~85
Operating Temperature   °C -40~85
  50/50 Max dB 3.4/3.4 3.6/3.6 3.7/3.7
40/60 4.5/2.6 4.6/2.7 4.7/2.8
30/70 5.8/1.85 5.9/1.9 6.0/2.0
20/80 7.6/1.2 7.7/1.3 7.9/1.4
10/90 10.8/0.65 11.0/0.7 11.1/0.8
1/99 21.8/0.2 22.1/0.25 22.5/0.3



Other type parameter:

Parameter   Specification
Operating Wavelength nm Single Window1 Dual,Three Window2
(1×N)   N=3 N=4 N=5 N=8 N=16 N=24 N=32 N=64
Fiber Type   Corning SMF-28e
IL(MAX) dB 5.41/5.62 7.01/7.22 7.81/8.02 10.01/10.42 13.51/13.92 15.01/15.42 17.31/17.52 21.01/21.52
Uniformity dB 0.51/0.62 0.51/0.62 0.61/0.82 0.81/1.02 1.11/1.32 1.21/1.52 1.31/1.52 2.11/2.52
Return Loss dB ≥55
Directivity dB ≥55
PDL dB <0.20 <0.20 <0.30 <0.30 <0.40 <0.50 <0.50 <0.50



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
